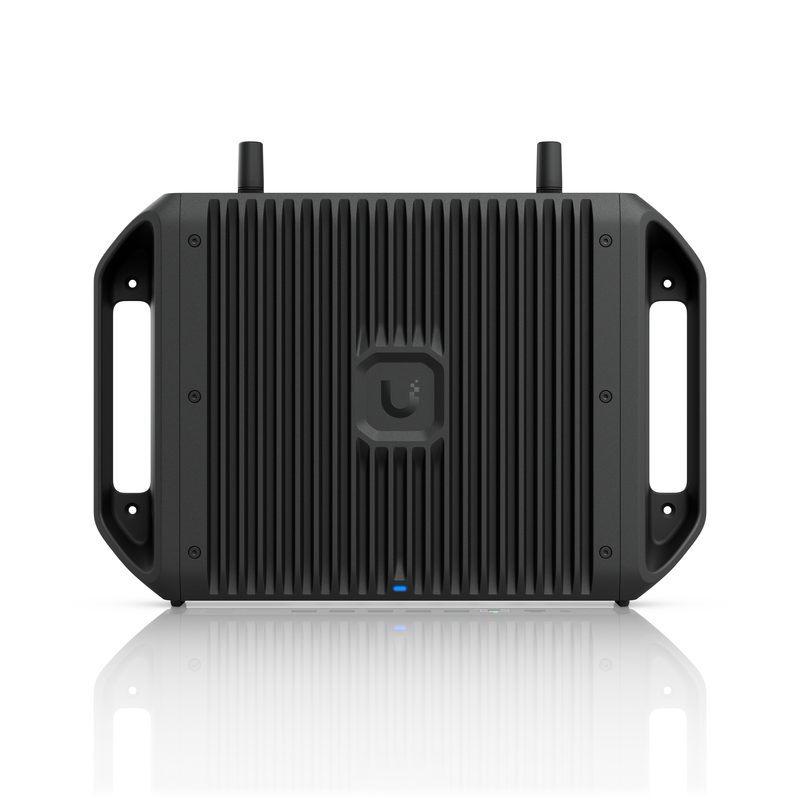

Ubiquiti U5G-MAX-OUTDOOR

Beschreibung

Ruggedized, fanless 10 GbE UniFi Cloud Gateway delivering 350W of total system power for high-density PoE deployments, with advanced routing capabilities and microSD storage for full UniFi application support.

Technische Daten

SIM

(1) Nano SIM (1) Nano-SIM or eSIM

Color

Black

Weight

1.5 kg (3.3 lb)

Buttons

(2) Release buttons

Gewicht

1,999 kg

10G SFP+

1 (10G/1G)

Capacity

128/256/512 GB/1 TB

Mounting

Pole mount, wall mount (Included)

U Height

1U

Treatment

Powder coating, liquid coating

Dimensions

Device: 307.9 x 203.5 x 43.7 mm (12.1 x 8 x 1.7") Table stand: 203.5 x 100.2 x 21.9 mm (8 x 3.9 x 0.9")

10 GbE RJ45

1 (PoE+++) (10G/5G/2.5G/1G/100M)

Form Factor

Wall-mounted Compact desktop (Table stand included) Rack mount (Accessory sold separately)

Speed Class

Class 10, UHS-I (U1), V10

2.5 GbE RJ45

4 (2 PoE+++, 2 PoE+) (2.5G/1G/100M)

Coverage Area

115 m² (1,250 ft²)

PoE Interface

(1) PoE input

Hardware: PoE+

30W

Hardware: Type

(6) Embedded cellular antennas, including (2) high-gain for downlink: peak 9 dBi, 85°x85°

Endurance (TBW)

128 GB: 64 256 GB: 128 512 GB: 500 1 TB: 1,000

Hardware: 5G SA

Downlink 1.8 Gbps Uplink 650 Mbps

Managed Cameras

(15) HD (8) 2K (5) 4K

Weatherproofing

IPX6 IP67 (With cable-gland door kit)

Hardware: 4G LTE

Downlink 1.6 Gbps Uplink 210 Mbps

Hardware: 5G NSA

Downlink 3.4 Gbps Uplink 560 Mbps

Hardware: Button

(1) Factory reset (2) Handle release buttons

Hardware: PoE+++

90W

Hardware: Weight

Device: 2.4 kg (5.3 lb) Table stand: 321 g (11.3 oz)

Default WAN Ports

(1) 10G SFP+ (1) 10 GbE RJ45 (1) 2.5 GbE RJ45

Hardware: Buttons

(1) Factory reset

Hardware: Display

1.14" status display

Enclosure Material

Polycarbonate, galvanized steel

Hardware: Category

5G NR

IDS/IPS Throughput

5 Gbps

Mechanical: Weight

Device: 1.2 kg (2.6 lb) Mount: 130 g (4.6 oz)

Hardware: Processor

Quad-core ARM® Cortex®-A73 at 2.2 GHz

Managed Access Hubs

50

Max. WAN Port Count

5

Hardware: Management

Ethernet Bluetooth

Hardware: PoE Budget

DC input: 270W ATX power: 75W

Management Interface

SDA 6.0

Networking Interface

(1) 2.5 GbE RJ45 port 5G NR and LTE radio

Software: Mobile App

UniFi iOS™: Version 10.32.0 and later UniFi Android™: Version 10.35.0 and later

Hardware: NVR Storage

Pre-installed 128 GB microSD for NVR

Managed UniFi Devices

50+

Grid overview: IDS/IPS

5 Gbps

Hardware: Power Method

(1) DC Input (350W PSU) (1) ATX power (48V)

Hardware: Power Supply

54V DC, 350W (Adapter included) ATX power (48V)

Integrated WiFi: 5 GHz

4.3 Gbps

Hardware: Max. TX Power

HPUE power class 2: 26 dBm

Hardware: System Memory

3 GB

Software: UniFi Network

Version 10.4.57 and later

Hardware: Certifications

CE, FCC, IC

Hardware: Expansion Slot

MicroSD Card

Integrated WiFi: 2.4 GHz

688 Mbps

Integrated WiFi: 802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

Integrated WiFi: 802.11b

1, 2, 5.5, 11 Mbps

Integrated WiFi: 802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

Integrated WiFi: 802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Mechanical: Wind Loading

91N at 200 km/h (20.45 lbf at 125 mph)

Hardware: Frequency Bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79

Ambient Operating Humidity

5 to 95% noncondensing

Hardware: Heat Dissipation

95 BTU/hr (Excluding PoE output)

Mechanical: Mount Material

UV-stabilized polycarbonate

Sequential Read Performance

128 GB: 100 MB/s 256 GB: 100 MB/s 512 GB: 160 MB/s 1 TB: 160 MB/s

Hardware: ESD/EMP Protection

Air: ± 8kV, contact: ± 4kV

Hardware: Enclosure Material

Device: Polycarbonate, aluminium alloy Table stand: Polycarbonate, galvanized steel, silicone rubber

Security: IDS/IPS Signatures

55,000+ with CyberSecure

Simultaneous Users Connected

500+

Ambient Operating Temperature

-25 to 85° C (-13 to 185° F)

Integrated WiFi: WiFi Standard

802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)

Mechanical: Enclosure Material

Aluminum-alloy, UV-stabilized polycarbonate

Mechanical: Pole Mount Diameter

1–2.5" (25–63.5 mm) on pipe outer diameter

Grid overview: Max. Client Count

500

Hardware: Max. Power Consumption

28W (Excluding PoE output)

Hardware: Voltage Range PoE Mode

50-57V

Hardware: Supported Voltage Range

100–240V AC

Integrated WiFi: 802.11ac (WiFi 5)

6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

Integrated WiFi: 802.11ax (WiFi 6)

7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

Integrated WiFi: 802.11be (WiFi 7)

7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)

Networking: MAC Address Table Size

4,000

Hardware: Ambient Operating Humidity

5 to 95% noncondensing

Hardware: Ambient Operating Temperature

-30 to 50° C (-22 to 122° F)
