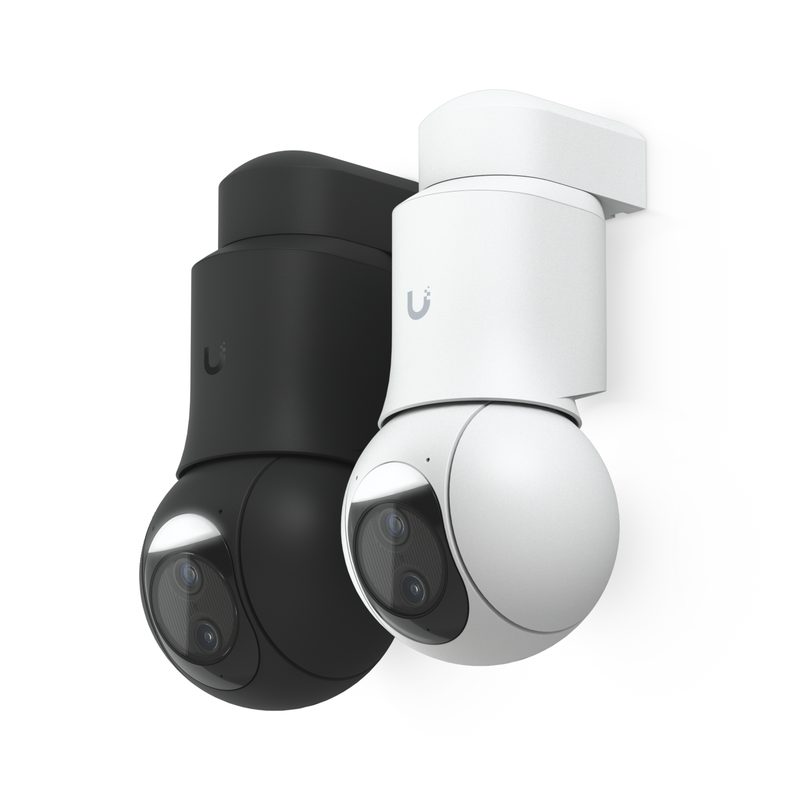

Ubiquiti UniFi Video Camera G6 PTZ • Outdoor • 4K • InfraRot • IP66 • POE+ • black • UVC-G6-PTZ-B
Ubiquiti · UVC-G6-PTZ-B · EAN 0810177161493
sofort lieferbar
506,24 €inkl. MwSt., zzgl. Versand
Beschreibung
All-weather, 4K dual-lens camera with 10x hybrid zoom, 1/1.8" 8MP image sensor, Multi-TOPS AI Engine, and ultra-low latency pan-tilt-zoom control for motion tracking.
Technische Daten
- Audio
- Two-way audio
- Höhe
- 14,7 cm
- Tiefe
- 42,2 cm
- Breite
- 15,3 cm
- Weight
- 101.5 g (3.6 oz)
- Gewicht
- 1,932 kg
- Capacity
- 128/256/512 GB/1 TB
- Mounting
- Wall, Surface, Ceiling, Pole mount (Included) Corner, In-Ceiling, Pendant mount, Conduit adapter (Optional)
- Connector
- (2) Shielding RJ45
- Standards
- TIA/EIA-568-B.2 ISO/IEC 11801
- Zoom Mode
- 10x Hybrid
- Dimensions
- Without mount: ⌀107.2 x 104.5 x 203.2 mm (⌀4.2 x 4.1 x 8") With mount: ⌀107.2 x 111 x 230.2 mm (⌀4.2 x 4.4 x 9.1")
- Resolution
- 4K
- Bend Radius
- Min. 50.4 mm (1.98'')
- Form Factor
- microSDXC™
- Speed Class
- Class 10, UHS-I (U1), V10
- Flame Rating
- VW-1 (UL1581)
- Pack Options
- Single Unit
- Compatibility
- UVC-G5-PTZ UVC-G6-PTZ
- Field of View
- Wide: H: 109.9°, V: 56.7°, D: 134.1° Tele: H: 26.6°, V: 15.1° , D: 30.4°
- UV Resistance
- ASTM G 151/154
- Conductor Type
- Stranded copper
- Pan-Tilt Range
- Pan: 350° Tilt: 100°
- Shielding Type
- S/FTP
- Endurance (TBW)
- 128 GB: 64 256 GB: 128 512 GB: 500 1 TB: 1,000
- IR Night Vision
- 30 m (98 ft)
- Jacket Diameter
- 6.3 mm (0.25")
- Jacket Material
- Thermoplastic elastomer (TPE)
- Weatherproofing
- IP66
- Available Colors
- White, Black
- Hardware: Button
- (1) Factory reset
- Hardware: Weight
- Without arm mount: 1 kg (2.2 lb) With arm mount: 1.1 kg (2.4 lb)
- Threaded Outlets
- G3/4"
- Available Lengths
- 1, 2, 3, 5, 8 m (3.3, 6.6, 9.8, 16.4, 26.3 ft)
- Grid overview: AI
- Enhanced AI
- Grid overview: IR
- 30 m (98 ft)
- Mounting Material
- Polycarbonate
- Performance: Lens
- Wide: F 4.46 mm; ƒ/1.65 Tele: F 16.3 mm; ƒ/2.4
- Tamper Resistance
- IK04
- Enclosure Material
- Polycarbonate
- Mechanical: Weight
- 80 g (2.8 oz)
- Supported PoE Type
- Up to PoE+++
- Conductor Wire Gage
- 24 AWG
- Grid overview: Zoom
- 10x Hybrid Zoom
- Hardware: Processor
- Quad-core Arm® Cortex®-A53 based chip
- Performance: Sensor
- Wide: 1/1.8" 8MP Tele: 1/1.8" 8MP
- Supported Data Rate
- GbE
- Grid overview: Sound
- Two-Way Audio
- Hardware: Insulation
- Max. Resistance: 1G ohm @ 50V
- Management Interface
- SDA 6.0
- Operating Environment
- Outdoor
- Hardware: Power Method
- PoE+
- Mechanical: Dimensions
- 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")
- Performance: Night Mode
- Built-in IR LED illumination and IR cut filter
- Performance: Resolution
- 8MP 3840 x 2160 (16:9)
- UniFi Application Suite
- Protect
- Hardware: Certifications
- CE, FCC, IC
- Hardware: ESD Protection
- Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
- Hardware: Expansion Slot
- MicroSD card
- Hardware: Mount Material
- Arm mount: polycarbonate Pole mount: aluminum alloy
- Installation Temperature
- -20 to 60°C (-4 to 140°F)
- Ambient Operating Humidity
- 5 to 95% noncondensing
- Hardware: Max. Capacitance
- 1.0 pF @ 1 MHz
- Ambient Storage Temperature
- -40 to 80°C (-40 to 176°F)
- Grid overview: Weatherproof
- Outdoor Exposed
- Hardware: Discharge Current
- 10kA+
- Mechanical: Weatherproofing
- IPX5
- Performance: Image Settings
- Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
- Sequential Read Performance
- 128 GB: 100 MB/s 256 GB: 100 MB/s 512 GB: 160 MB/s 1 TB: 160 MB/s
- Hardware: Enclosure Material
- Aluminum alloy, polycarbonate
- Performance: Max. Frame Rate
- 30 FPS
- Ambient Operating Temperature
- -30 to 75°C (-22 to 167°F)
- Hardware: Pole Mount Diameter
- 1.5–2" (38–50 mm)
- Grid overview: Lens Resolution
- 4K
- Hardware: Data Line Protection
- Up to 2.5 Gbps
- Hardware: Networking Interface
- (2) RJ45 female connectors
- Mechanical: Enclosure Material
- Polycarbonate
- Hardware: DC Spark-Over Voltage
- 90V @ 100V/s
- Hardware: Max. Power Consumption
- 24.5W
- Hardware: Supported Voltage Range
- 42.5–57V DC
- Performance: Networking Interface
- 10/100 MbE RJ45 port
- Supported Gang and Junction Boxes
- 1-gang 2-gang 4" octagon 3.5" round 4" square 4" round European outlet
- Hardware: Ambient Operating Humidity
- 20 to 90% noncondensing
- Hardware: Ambient Operating Temperature
- -30 to 50° C (-22 to 122° F)
- Hardware: Max. Impulse Spark-Over Voltage
- 700V @ 1kV/µs
- Hardware: Shock and Vibration Certification
- ETSI300-019-1.4 Standard
