Ubiquiti UA-Retrofit-Hub-2

Beschreibung

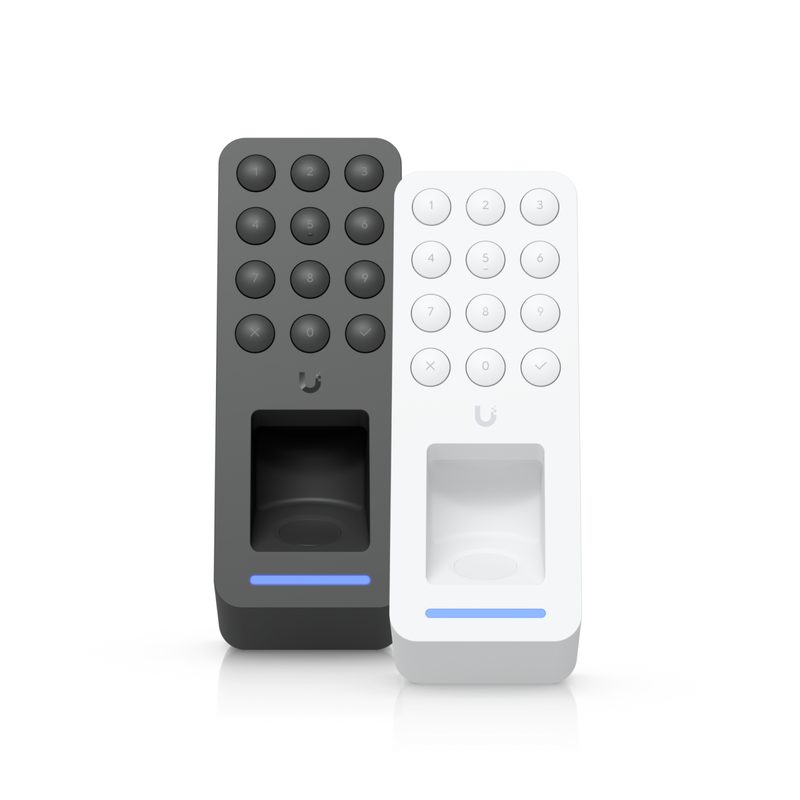

Third-generation, indoor/outdoor NFC card reader with fingerprint, keypad and Touch Pass support.

Technische Daten

Weight

220 g (7.8 oz)

Mounting

Wall, VESA mount

Dimensions

126.2 x 45 x 56.9 mm (5 x 1.8 x 2.2")

Power Method

PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU

UL 294 Level

Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I

Hardware: LEDs

R/G/B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>

Input Terminals

(2) Door exit request (1) Door position (1) Emergency

Supported Doors

1

Weatherproofing

IP55

Hardware: Button

(1) Factory reset

Hardware: Buttons

(1) Factory reset

Hardware: Sensors

Capacitive Fingerprint

Mounting Material

Polycarbonate, sponge, rubber

Grid overview: NFC

NFC

Grid overview: PoE

4 PoE Ports

Hardware: Security

OSDP v2

Maximum User Count

6,000

Mechanical: Format

ISO 7810 ID-1

Mechanical: Weight

164 g (5.8 oz)

Fingerprint Capacity

300

Grid overview: Apple

Touch Pass

Mechanical: Mounting

Wall, gang-box mount (Included) Junction box (Optional)

Hardware: Connectivity

BLE 4.2 NFC

Hardware: Power Method

PoE

Hardware: Power Supply

DC 12/24V

Mechanical: Dimensions

85.6 x 53.98 x 0.84 mm (3.37 x 2.13 x 0.03")

Hardware: Digital Input

Request to exit, request to enter, remote release, door position sensor

Hardware: NFC Frequency

13.56 MHz

Hardware: PoE Interface

(1) PoE++ input, 50V DC, 1A (4) PoE+ outputs, 50V DC, 30W per port (Max 45W aggregated)

UniFi Application Suite

Access

Hardware: Certifications

CE, FCC, IC

Hardware: NFC Read Range

< 30 mm (1.18'')

Hardware: NFC Technology

ISO 14443A, 14443B, 15693 NFC Tag 1,2,3,4,5 MIFARE Classic MIFARE Plus Mifare Ultralight MIFARE DESFire

Mechanical: Pack Options

UA-Card-B-10/UA-Card-W-10: 10-Pack UA-Card: 20-Pack UA-Card-B-100/UA-Card-W-100: 100-pack

Mechanical: NFC Frequency

13.56 MHz

Hardware: Dry Output Relay

Lock: 30V DC, 1A Aux: 30V DC, 1A

Hardware: Other locks (1A)

24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)

Hardware: UL 294 Statement

Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725

Mechanical: Mount Material

Steel

Mechanical: NFC Technology

MIFARE DESFire EV3 UniFi Access Proprietary Security Protocol

Grid overview: Weatherproof

Outdoor Exposed

Grid overview: AUX Terminals

2 AUX Terminals

Hardware: ESD/EMP Protection

Air: ± 8kV, contact: ± 4kV

Grid overview: Lock Terminals

2 Lock Terminals

Hardware: Reader Power Output

12V DC, up to 0.5A

Grid overview: Physical Unlock

Keypad Unlock

Hardware: Networking Interface

(1) 10/100 MbE RJ45 port

Hardware: Powered Output Relay

Lock: 12V DC, 1A Aux: 12V DC, 0.33A 12V DC, 0.33A

Mechanical: Enclosure Material

Polycarbonate, aluminum alloy

Software: Software Information

The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>

Grid overview: Additional Inputs

4 Additional Inputs

Hardware: Indoor and Outdoor Use

Yes

Hardware: Max. Power Consumption

5W

Software: Management Application

Access

Hardware: Supported Voltage Range

48V DC

Hardware: CAN/ULC-60839-11-1 Grade

Grade assignment: 1

Hardware: PoE Cabling Requirements

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge per

Hardware: UA-Lock-Electric (400mA)

24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)

Hardware: Ambient Operating Humidity

5 to 90% noncondensing

Hardware: UA-Retrofit-Reader (250mA)

18 UACC-Cable-DoorLockRelay length: 152.4 m (500 ft)

Hardware: Ambient Operating Temperature

-30 to 50° C (-22 to 122° F)

Hardware: UA-Lock-Magnetic-270kg (800mA)

24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)

Hardware: UA-Lock-Magnetic-540kg (500mA)

24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)

Hardware: Document number, and issue date and/or revision le

UA-Hub-Door002, V01
