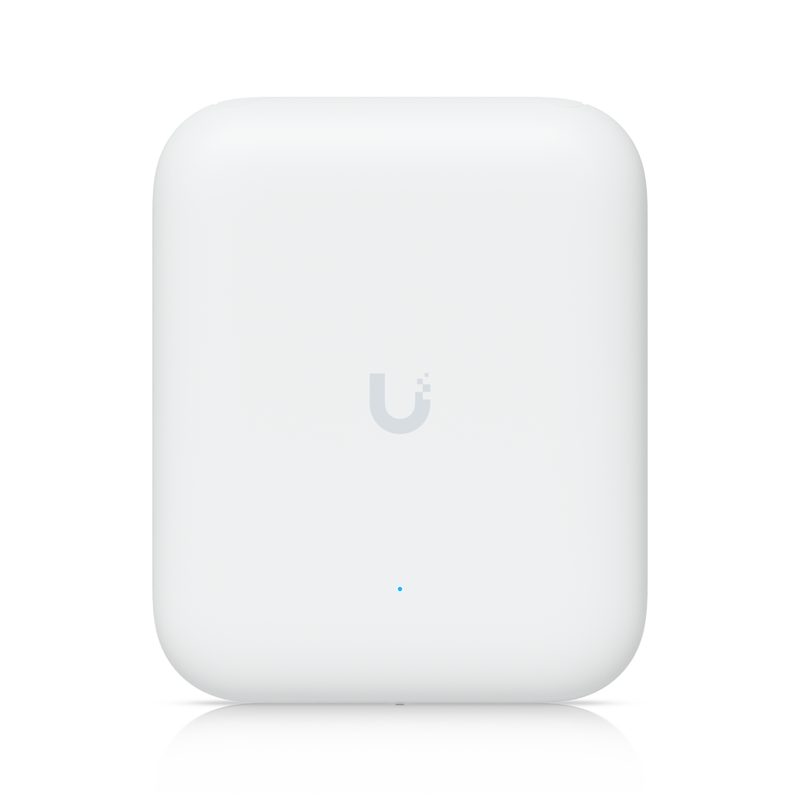

Ubiquiti U7-Pro-Outdoor Wifi7
Ubiquiti · U7-Pro-Outdoor · EAN 0810084698730
Lieferzeit auf Anfrage
349,72 €inkl. MwSt., zzgl. Versand
Beschreibung
All-weather IP67 WiFi 7 AP with 6 spatial streams, integrated directional super antenna, and articulation mounting bracket.
Technische Daten
- Höhe
- 10,0 cm
- Tiefe
- 29,1 cm
- Breite
- 26,0 cm
- Uplink
- 2.5 GbE
- Gewicht
- 1,886 kg
- Mounting
- Wall, Pole (Mounts Included)
- Dimensions
- Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6") With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8")
- Power Method
- PoE+
- Coverage Area
- 465 m² (5,000 ft²)
- WiFi Standard
- WiFi 7
- Spatial Streams
- 6
- Weatherproofing
- IPX6 IP67 (With cable-gland door kit)
- Hardware: System
- (1) Power: White/Blue (4) Mesh signal: Blue
- Hardware: Weight
- Device: 1.2 kg (2.6 lb) With mount: 1.33 kg (2.9 lb)
- Max. Client Count
- 300+
- Mechanical: Weight
- 80 g (2.8 oz)
- Performance: 5 GHz
- 4 x 4 (DL/UL MU-MIMO)
- Grid overview: WiFi7
- WiFi 7
- Hardware: Insulation
- Max. Resistance: 1G ohm @ 50V
- Hardware: Management
- Ethernet
- Performance: 2.4 GHz
- 2 x 2 (DL/UL MU-MIMO)
- Performance: 802.11n
- 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- Software: Mobile App
- iOS™ version 10.20.2 and later Android™ version 10.21.7 and later
- Grid overview: Uplink
- 2.5 GbE
- Hardware: Wind Loading
- 74.6 N at 200 km/h (16.8 lbf at 125 mph)
- Mechanical: Dimensions
- 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")
- Software: UniFi Network
- Version 9.0.114 and later
- Hardware: Certifications
- CE, Anatel: 04999-25-08356
- Hardware: ESD Protection
- Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
- Hardware: Mount Material
- UV-stabilized polycarbonate
- Performance: Max. BSSIDs
- 8 per Radio
- Hardware: Max. Capacitance
- 1.0 pF @ 1 MHz
- Hardware: Discharge Current
- 10kA+
- Mechanical: Weatherproofing
- IPX5
- Hardware: Enclosure Material
- UV-stabilized polycarbonate, aluminum alloy
- Hardware: Pole Mount Diameter
- 1–2.5" (25–63.5 mm)
- Hardware: Data Line Protection
- Up to 2.5 Gbps
- Hardware: Networking Interface
- (1) 1/2.5 GbE RJ45 port
- Mechanical: Enclosure Material
- Polycarbonate
- Performance: 802.11ac (WiFi 5)
- 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
- Performance: 802.11ax (WiFi 6)
- 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
- Performance: 802.11be (WiFi 7)
- 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
- Hardware: DC Spark-Over Voltage
- 90V @ 100V/s
- Grid overview: Max. Client Count
- 300
- Hardware: Max. Power Consumption
- 21W
- Hardware: Supported Voltage Range
- 42.5–57V DC
- Hardware: Ambient Operating Humidity
- 5 to 95% noncondensing
- Hardware: Ambient Operating Temperature
- -30 to 60° C (-22 to 140° F)
- Hardware: Max. Impulse Spark-Over Voltage
- 700V @ 1kV/µs
- Hardware: Shock and Vibration Certification
- ETSI300-019-1.4 Standard
