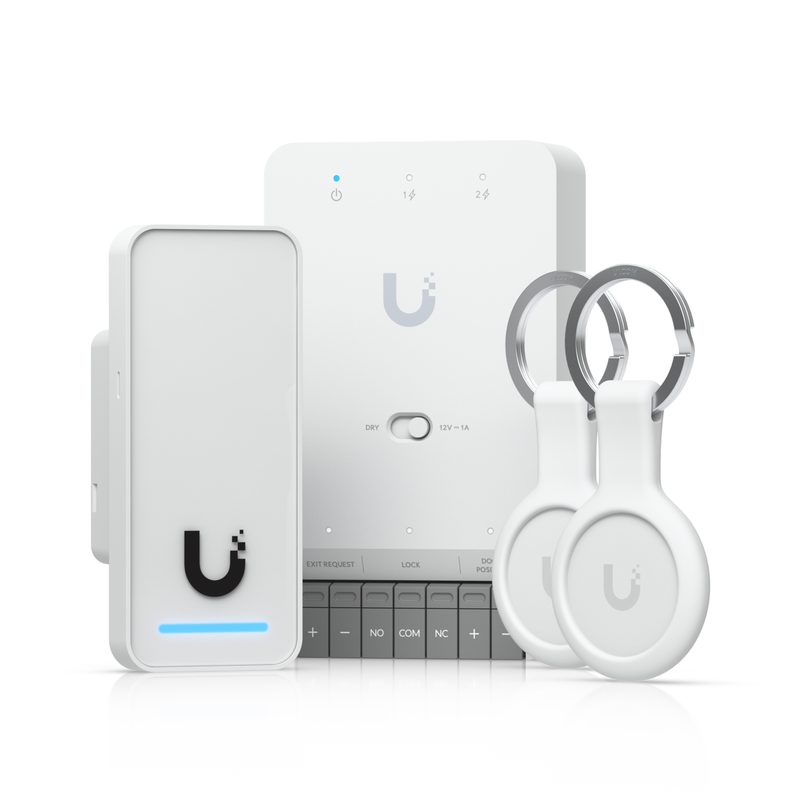

Ubiquiti Access G2 Starter Kit
Ubiquiti · UA-G2-SK · EAN 0810084691670
sofort lieferbar
321,28 €inkl. MwSt., zzgl. Versand
Beschreibung
A simple, all-in-one kit for UniFi Access, designed to manage a single door with one reader. Supports seamless setup and Touch Pass for modern, secure access control.
Technische Daten
- Audio
- Two-way audio
- Höhe
- 8,3 cm
- Tiefe
- 24,5 cm
- Breite
- 21,0 cm
- Gewicht
- 1,339 kg
- 1 GbE RJ45
- 9 (4 PoE+; 4 PoE++) (1G/100M/10M)
- Dimensions
- 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
- In the Box
- (1) Door Hub (1) G2 Reader (10) Access Cards
- Redundancy
- Battery Power Backup
- Touch Pass
- 10 free 1-year Touch Passes included <a href="https://help.ui.com/hc/en-us/articles/27130425853079-UniFi-Access-Touch-Pass-Configuration" target="_blank" rel="noopener noreferrer">Learn More</a>
- Form Factor
- Rack mount (1U)
- UL 294 Level
- Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
- Door Hub: LEDs
- B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>
- Hardware: LEDs
- R/G/B/W/Amber <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>
- Hardware: PoE+
- 4
- Hardware: Size
- 120 mm (4.7") diagonal
- G2 Reader: LEDs
- R/G/B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>
- G3 Reader: LEDs
- R/G/B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>
- Hardware: PoE++
- 4
- Max. PoE Output
- Up to PoE++
- Weatherproofing
- IP55
- Door Hub: Button
- (1) Factory reset
- Door Hub: Weight
- 363 g (12.8 oz)
- Hardware: Button
- (1) Factory reset
- Hardware: Weight
- Without mount: 9 kg (19.9 lb) With mount: 9.2 kg (20.3 lb)
- G2 Reader: Button
- (1) Factory reset
- G2 Reader: Weight
- 82 g (2.9 oz)
- G3 Reader: Button
- (1) Factory reset
- G3 Reader: Weight
- 82 g (2.9 oz)
- Hardware: Sensors
- Proximity sensor
- Door Hub: Mounting
- DIN-rail (Included)
- G2 Reader: Sensors
- Proximity sensor
- G2 Reader: Speaker
- (1) Yes, 0.7W
- G3 Reader: Sensors
- Proximity sensor
- G3 Reader: Speaker
- (1) Yes, 0.7W
- Grid overview: NFC
- NFC
- Mechanical: Format
- ISO 7810 ID-1
- Mechanical: Weight
- 136 g (4.8 oz)
- Access Card: Format
- ISO 7810 ID-1
- Access Card: Weight
- 5 g (0.18 oz)
- Door Hub Mini: LEDs
- B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>
- G2 Reader: Mounting
- In-wall, gang box (Included) Junction box (Optional)
- G3 Reader: Mounting
- In-wall, gang box (Included) Junction box (Optional)
- Hardware: Luminance
- 480 nits (Typical)
- Door Hub: Dimensions
- 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
- Grid overview: Apple
- Touch Pass
- Grid overview: Sound
- Two-Way Audio
- Hardware: Management
- Ethernet AR
- Hardware: Resolution
- 2MP 1200 x 1600 (3:4)
- Mechanical: Mounting
- Wall, gang-box mount (Included) Angle mount, junction box (Optional)
- Door Hub Mini: Button
- (1) Factory reset (1) Dry/Wet switch
- Door Hub Mini: Weight
- 190 g (6.7 oz)
- G2 Reader: Dimensions
- 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
- G3 Reader: Dimensions
- 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
- Hardware: LCM Display
- 1.3" touchscreen
- Pocket Keyfob: Weight
- 16 g (0.56 oz)
- Door Hub: Power Method
- PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
- Door Hub: UL 294 Level
- Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
- Hardware: Connectivity
- BLE 4.2 NFC
- Hardware: Power Method
- PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
- Hardware: Power Supply
- AC/DC, internal, 240W
- Mechanical: Dimensions
- 85.6 x 53.98 x 0.84 mm (3.37 x 2.13 x 0.03")
- Total PoE Availability
- 120W
- Access Card: Dimensions
- 85.6 x 53.98 x 0.84 mm (3.37 x 2.13 x 0.03")
- Door Hub Mini: Mounting
- DIN-rail (Included)
- Door Hub: Digital Input
- Request to exit, request to enter, remote release, door position sensor
- Door Hub: PoE Interface
- (1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, 30W per port (Max 45W aggregated)
- G2 Reader: Connectivity
- BLE 4.1 NFC
- G2 Reader: Power Method
- PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
- G2 Reader: UL 294 Level
- Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
- G3 Reader: Connectivity
- BLE 4.1 NFC
- G3 Reader: Power Method
- PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
- G3 Reader: UL 294 Level
- Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
- Hardware: Field of View
- H: 98.6°, V: 125.7°, D: 157.8°
- Hardware: NFC Frequency
- 13.56 MHz
- Software: UniFi Network
- Version 6.2.26 and later
- UniFi Application Suite
- Protect Access
- Door Hub: Certifications
- CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
- Door Hub: Mount Material
- Polycarbonate
- G2 Reader: NFC Frequency
- 13.56 MHz
- G3 Reader: NFC Frequency
- 13.56 MHz
- Hardware: Certifications
- CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1
- Hardware: ESD Protection
- Air/contact: ± 24kV
- Hardware: NFC Read Range
- < 30 mm (1.18'')
- Hardware: NFC Technology
- ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
- Mechanical: Pack Options
- UA-Card-B-10/UA-Card-W-10: 10-Pack UA-Card: 20-Pack UA-Card-B-100/UA-Card-W-100: 100-pack
- Door Hub Mini: Dimensions
- 113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1")
- Door Hub: Input Terminals
- (2) Door exit request (1) Door position (1) Emergency
- Door Hub: Supported Doors
- 1
- G2 Reader: Certifications
- CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
- G2 Reader: Mount Material
- Aluminum alloy
- G2 Reader: NFC Read Range
- < 30 mm (1.18'')
- G2 Reader: NFC Technology
- ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T
- G3 Reader Pro: Resolution
- 12 MP (3072 × 4096)
- G3 Reader: Certifications
- CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
- G3 Reader: Mount Material
- Aluminum alloy
- G3 Reader: NFC Read Range
- < 30 mm (1.18'')
- G3 Reader: NFC Technology
- ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
- Hardware: Max. Frame Rate
- 30 FPS
- Mechanical: NFC Frequency
- 13.56 MHz
- Pocket Keyfob: Dimensions
- 84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")
- Access Card: NFC Frequency
- 13.56 MHz
- Door Hub: Dry Output Relay
- Lock: 30V DC, 1A Aux: 30V DC, 1A
- Door Hub: Other locks (1A)
- 24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
- Door Hub: UL 294 Statement
- Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725
- G2 Reader: Weatherproofing
- IP55
- G3 Reader: Weatherproofing
- IP55
- Hardware: Heat Dissipation
- 170.6 BTU/hr (Excluding PoE Output)
- Hardware: UL 294 Statement
- Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power
- Mechanical: Mount Material
- Aluminum alloy
- Mechanical: NFC Technology
- MIFARE DESFire EV3 UniFi Access Proprietary Security Protocol
- Access Card: NFC Technology
- ISO/IEC 14443 Type A MIFARE DESFire UniFi Access Proprietary Security Protocol
- Door Hub Mini: Power Method
- PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
- Door Hub Mini: UL 294 Level
- Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
- G2 Reader: UL 294 Statement
- Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power
- G3 Reader: UL 294 Statement
- Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power
- Grid overview: Weatherproof
- Outdoor Exposed
- Hardware: Screen Technology
- Capacitive touch
- Door Hub Mini: Digital Input
- Request to exit, door position sensor
- Door Hub Mini: PoE Interface
- (1) PoE++ input, 50V DC, 1A (2) PoE outputs, 50V DC, 30W per port (Max 45W aggregated)
- Door Hub: Enclosure Material
- Polycarbonate
- G3 Reader Pro: Field of View
- H: 98.6°, V: 125.7°, D: 157.8°
- Hardware: ESD/EMP Protection
- Air: ± 15kV, contact: ± 8kV
- Hardware: Enclosure Material
- SGCC steel
- Hardware: Power Input Method
- AC input DC input (Backup)
- Hardware: Screen Orientation
- Portrait
- Performance: Forwarding Rate
- 13 Mpps
- Performance: Supported VLANs
- 1,000
- Pocket Keyfob: Certification
- CE
- Pocket Keyfob: NFC Frequency
- 13.56 MHz
- Door Hub Mini: Certifications
- CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
- G2 Reader: ESD/EMP Protection
- Air: ± 15kV, contact: ± 8kV
- G2 Reader: Enclosure Material
- Polycarbonate, glass
- G3 Reader: ESD/EMP Protection
- Air: ± 15kV, contact: ± 8kV
- G3 Reader: Enclosure Material
- Polycarbonate, glass
- Pocket Keyfob: NFC Technology
- ISO/IEC 14443 Type A MIFARE DESFire EV3 4K UniFi Access Proprietary Security Protocol
- Door Hub Mini: Input Terminals
- (1) Door Exit Request (1) Door Position
- Door Hub Mini: Supported Doors
- 1
- Door Hub: Networking Interface
- (5) 10/100/1000 Base-T
- Door Hub: Powered Output Relay
- Lock: 12V DC, 1A Aux: 12V DC, 0.33A 12V DC, 0.33A
- Door Hub: Software Information
- The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>
- Grid overview: Physical Unlock
- Pin Unlock
- Hardware: Networking Interface
- (1) GbE RJ45 port
- Hardware: Supported Rack Depth
- 482.6 mm (19") four-post racks Posts depths ranging from 700 to 1,000 mm (27.6–39.4”)
- Mechanical: Enclosure Material
- Polycarbonate, glass
- Pocket Keyfob: Weatherproofing
- IP54
- Software: Software Information
- The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>
- Door Hub Mini: Dry Output Relay
- 30V DC, 1A
- Door Hub Mini: Other locks (1A)
- 24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
- Door Hub Mini: UL 294 Statement
- Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power
- Door Hub Mini: Wet Output Relay
- 12V DC, 1A
- G2 Reader: Networking Interface
- (1) 10/100 MbE RJ45 port
- G2 Reader: Software Information
- The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>
- G3 Reader: Networking Interface
- (1) 10/100 MbE RJ45 port
- G3 Reader: Software Information
- The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>
- Performance: Packet Buffer Size
- 0.5 MB
- Performance: Switching Capacity
- 18 Gbps
- Door Hub: Management Application
- UniFi Access
- Door Hub: Max. Power Consumption
- 30W (Without PoE output) 50W (With PoE output)
- Hardware: Indoor and Outdoor Use
- Yes
- Hardware: Max. Power Consumption
- 6W
- Software: Management Application
- Access
- Door Hub Mini: Enclosure Material
- Polycarbonate, metal
- Door Hub Mini: Maximum User Count
- 3,000
- G2 Reader: Management Application
- UniFi Access
- G2 Reader: Max. Power Consumption
- 5W
- G3 Reader: Management Application
- UniFi Access
- G3 Reader: Max. Power Consumption
- 5W
- Hardware: Supported Voltage Range
- 48V DC
- Pocket Keyfob: Enclosure Material
- Polycarbonate, stainless steel, silicone rubber
- Door Hub: CAN/ULC-60839-11-1 Grade
- Grade assignment: 1
- Door Hub: PoE Cabling Requirements
- Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge per
- Door Hub: UA-Lock-Electric (400mA)
- 24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
- G2 Reader: Supported Voltage Range
- 48V DC
- G3 Reader: Supported Voltage Range
- 48V DC
- Hardware: CAN/ULC-60839-11-1 Grade
- Grade assignment: I
- Hardware: PoE Cabling Requirements
- Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge per
- Door Hub Mini: Networking Interface
- (3) GbE RJ45 ports
- Door Hub Mini: Software Information
- The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>
- G2 Reader: CAN/ULC-60839-11-1 Grade
- Grade assignment: I
- G2 Reader: PoE Cabling Requirements
- Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge per
- G3 Reader: CAN/ULC-60839-11-1 Grade
- Grade assignment: I
- G3 Reader: PoE Cabling Requirements
- Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge per
- Performance: MAC Address Table Size
- 8,000
- Door Hub: Ambient Operating Humidity
- 5 to 95% noncondensing
- Hardware: Ambient Operating Humidity
- 5 to 90% noncondensing
- Door Hub Mini: Management Application
- UniFi Access
- Door Hub Mini: Max. Power Consumption
- 19W (Without PoE output) 50W (With PoE output)
- G2 Reader: Ambient Operating Humidity
- 5 to 90% noncondensing
- G3 Reader: Ambient Operating Humidity
- 5 to 90% noncondensing
- Door Hub Mini: CAN/ULC-60839-11-1 Grade
- Grade assignment: I
- Door Hub Mini: PoE Cabling Requirements
- Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge per
- Door Hub Mini: UA-Lock-Electric (400mA)
- 24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
- Door Hub: Ambient Operating Temperature
- 0 to 40° C (32 to 104° F)
- Hardware: Ambient Operating Temperature
- Device: -30 to 45° C (-22 to 113° F) Display: -10 to 45° C (14 to 113° F)
- Door Hub: UA-Lock-Magnetic-270kg (800mA)
- 24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
- Door Hub: UA-Lock-Magnetic-540kg (500mA)
- 24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
- G2 Reader: Ambient Operating Temperature
- -30 to 45° C (-22 to 113° F)
- G3 Reader: Ambient Operating Temperature
- -30 to 45° C (-22 to 113° F)
- Door Hub Mini: Ambient Operating Humidity
- 5 to 90% noncondensing
- Pocket Keyfob: Ambient Operating Humidity
- 10 to 90% noncondensing
- Performance: Total Non-Blocking Throughput
- 9 Gbps
- Door Hub Mini: Ambient Operating Temperature
- 0 to 40° C (32 to 104° F)
- Pocket Keyfob: Ambient Operating Temperature
- -10 to 45° C (14 to 113° F)
- Door Hub Mini: UA-Lock-Magnetic-270kg (800mA)
- 24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
- Door Hub Mini: UA-Lock-Magnetic-540kg (500mA)
- 24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
- Door Hub Mini: Document number, and issue date and/or revisi
- UA-Hub-Door-Mini, V01
- Door Hub: Document number, and issue date and/or revision le
- UA-Hub-Door002, V01
- G2 Reader: Document number, and issue date and/or revision l
- UA-G2/UA-G2-Black, V02
- G3 Reader: Document number, and issue date and/or revision l
- UA-G3, V01
- Hardware: Document number, and issue date and/or revision le
- UA-G3-Pro-W/UA-G3-Pro-B, V01
