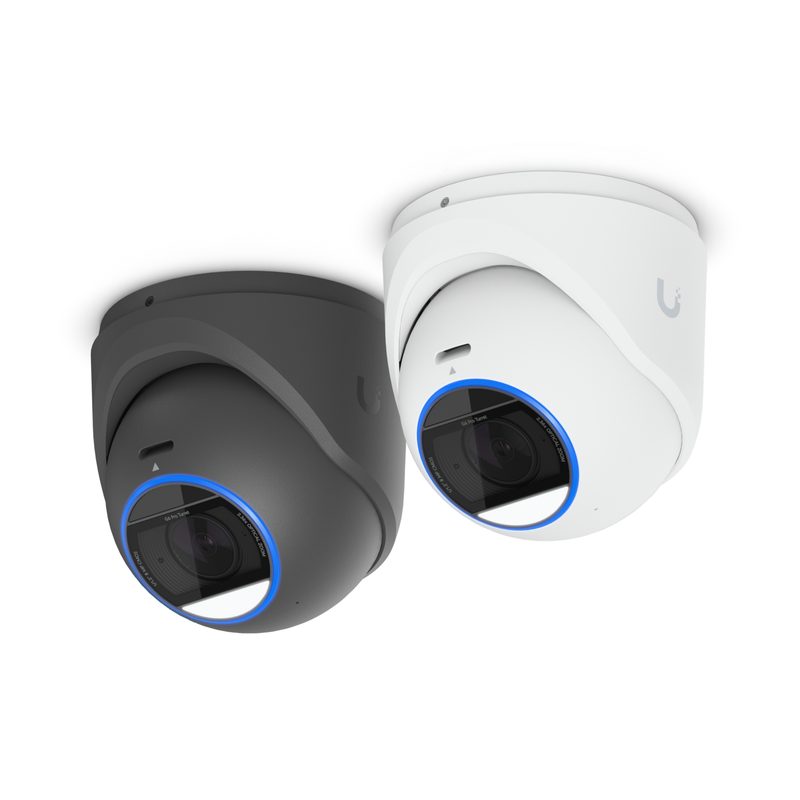

Ubiquiti G6 Pro Turret (schwarz)

Beschreibung

All-weather tamper-resistant 4K PoE+ camera with a Multi-TOPS AI engine, 2.36x optical zoom, and a large 1/1.2" CMOS sensor for exceptional low-light clarity and long-range IR night vision.

Technische Daten

Audio

Two-way audio

Weight

183 g (6.5 oz)

Gewicht

1,470 kg

Capacity

128/256/512 GB/1 TB

Mounting

Ceiling, Wall mount (Included) Arm, Pendant mount, Junction box (Optional)

Connector

(2) Shielding RJ45

Standards

TIA/EIA-568-B.2 ISO/IEC 11801

Zoom Mode

2.36x Optical

Dimensions

⌀117.2 × 116.5 mm (⌀4.61 × 4.59")

Resolution

4K

Bend Radius

Min. 50.4 mm (1.98'')

Form Factor

microSDXC™

Speed Class

Class 10, UHS-I (U1), V10

Flame Rating

VW-1 (UL1581)

Pack Options

Single Unit

Compatibility

UVC-AI-Dome UVC-AI-Turret UVC-AI-Pro UVC-AI-DSLR UVC-AI-LPR UVC-G6-Bullet UVC-G6-Edge-Bullet UVC-G6-Pro-Bullet UVC-G6-Turret UVC-G6-Pro-Turret UVC-G6-Edge-Turret UVC-G6-PTZ UVC-G6-Dome UVC-G6-Pro-Dome

Field of View

Wide: H: 113.8°, V: 61.9°, D: 134° Tele: H: 45.5°, V: 25.8°, D: 52°

UV Resistance

ASTM G 151/154

Conductor Type

Stranded copper

Shielding Type

S/FTP

Endurance (TBW)

128 GB: 64 256 GB: 128 512 GB: 500 1 TB: 1,000

IR Night Vision

40 m (131 ft)

Jacket Diameter

6.3 mm (0.25")

Jacket Material

Thermoplastic elastomer (TPE)

Weatherproofing

IP66

Available Colors

Black White

Hardware: Button

(1) Factory reset

Hardware: Weight

1.2 kg (2.6 lb)

Threaded Outlets

1 1/2” NPS

Available Lengths

1, 2, 3, 5, 8 m (3.3, 6.6, 9.8, 16.4, 26.3 ft)

Grid overview: AI

Enhanced AI

Grid overview: IR

40 m (131 ft)

Mounting Material

Stainless steel

Performance: Lens

F 5.85-13.8 mm; ƒ/1.5-ƒ/2.9

Tamper Resistance

IK04

Enclosure Material

Polycarbonate

Supported PoE Type

Up to PoE+++

Conductor Wire Gage

24 AWG

Grid overview: Zoom

2.36x

Hardware: Processor

Quad core Arm® Cortex®-A53 based chip

Performance: Sensor

1/1.2" 8MP

Pole Mount Diameter

1.5–2" (38–50 mm)

Supported Data Rate

GbE

Grid overview: Sound

Two-Way Audio

Management Interface

SDA 6.0

Networking Interface

GbE RJ45 port

Operating Environment

Outdoor

Hardware: Cable Length

30 cm (1 ft)

Hardware: Power Method

PoE+

Performance: Night Mode

Built-in adaptive IR LED illumination and IR cut filter

Performance: Resolution

8MP 3840 x 2160 (16:9)

UniFi Application Suite

Protect

Hardware: Cable Diameter

4.5 mm (0.2'')

Hardware: Certifications

CE, FCC, IC

Hardware: Expansion Slot

MicroSD card

Installation Temperature

-20 to 60°C (-4 to 140°F)

Grid overview: Resistance

IK04

Ambient Operating Humidity

5 to 95% noncondensing

Ambient Storage Temperature

-40 to 80°C (-40 to 176°F)

Grid overview: Weatherproof

Outdoor Exposed

Performance: Image Settings

Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR

Sequential Read Performance

128 GB: 100 MB/s 256 GB: 100 MB/s 512 GB: 160 MB/s 1 TB: 160 MB/s

Hardware: Enclosure Material

Aluminum alloy, polycarbonate

Performance: Max. Frame Rate

30 FPS

Ambient Operating Temperature

-30 to 75°C (-22 to 167°F)

Grid overview: Lens Resolution

4K

Hardware: Cable Connector Type

RJ45

Hardware: Max. Power Consumption

15W

Hardware: Supported Voltage Range

42.5–57V DC

Performance: Networking Interface

GbE RJ45 port

Supported Gang and Junction Boxes

1-gang 2-gang 4" octagon 3.5" round 4" square 4" round European outlet

Hardware: Jacket Enclosure Material

Thermoplastic elastomer, polycarbonate, silicone Rubber

Hardware: Ambient Operating Humidity

0 to 90% noncondensing

Hardware: Jacket Enclosure Dimensions

⌀20 x 70.55 mm (⌀0.8 x 2.8")

Hardware: Ambient Operating Temperature

-30 to 50º C (-22 to 122º F)
