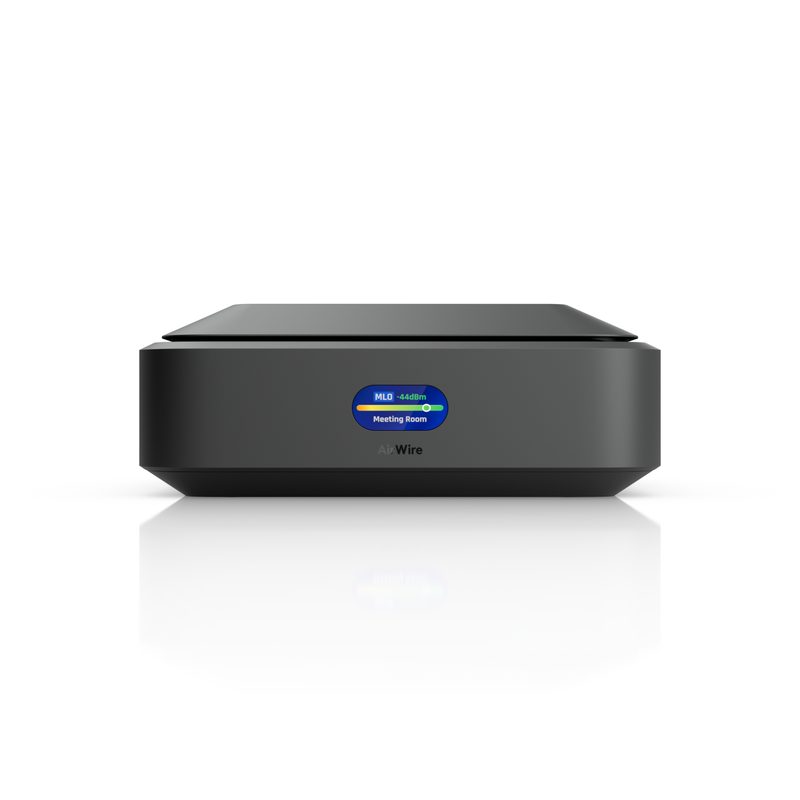

Ubiquiti AirWire

Beschreibung

High-performance WiFi 7 client adapter with STR MLO, enabling simultaneous full-duplex links for ultra-low latency, extended range, and true multi-gigabit real-world speeds.

Technische Daten

Uplink

WiFi

Dimensions

117 x 117 x 42.5 mm (4.6 x 4.6 x 1.7")

WiFi Standard

WiFi 7

Spatial Streams

4

Hardware: Weight

544 g (1.2 lb)

Hardware: Display

0.96" status display

Performance: 5 GHz

2 x 2 (DL/UL MU-MIMO)

Performance: 6 GHz

2 x 2 (DL/UL MU-MIMO)

Grid overview: WiFi7

WiFi 7

Hardware: Management

USB-C

Performance: 802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Hardware: Power Supply

USB PD 5/9/12V, 15W (Standard mode) USB PD 5/9/12V, 20W (Enhanced mode)

Software: UniFi Network

Version 10.2 and later

Hardware: Certifications

CE, FCC, IC

Hardware: Channel Bandwidth

HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)

Hardware: Enclosure Material

Polycarbonate

Hardware: Networking Interface

(1) 5 GbE port (USB3.2 Gen2)

Performance: 802.11ac (WiFi 5)

6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

Performance: 802.11ax (WiFi 6)

7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

Performance: 802.11be (WiFi 7)

7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)

Hardware: Max. Power Consumption

18W

Hardware: Ambient Operating Humidity

5 to 95% noncondensing

Hardware: Ambient Operating Temperature

-10 to 40° C (14 to 104° F)
