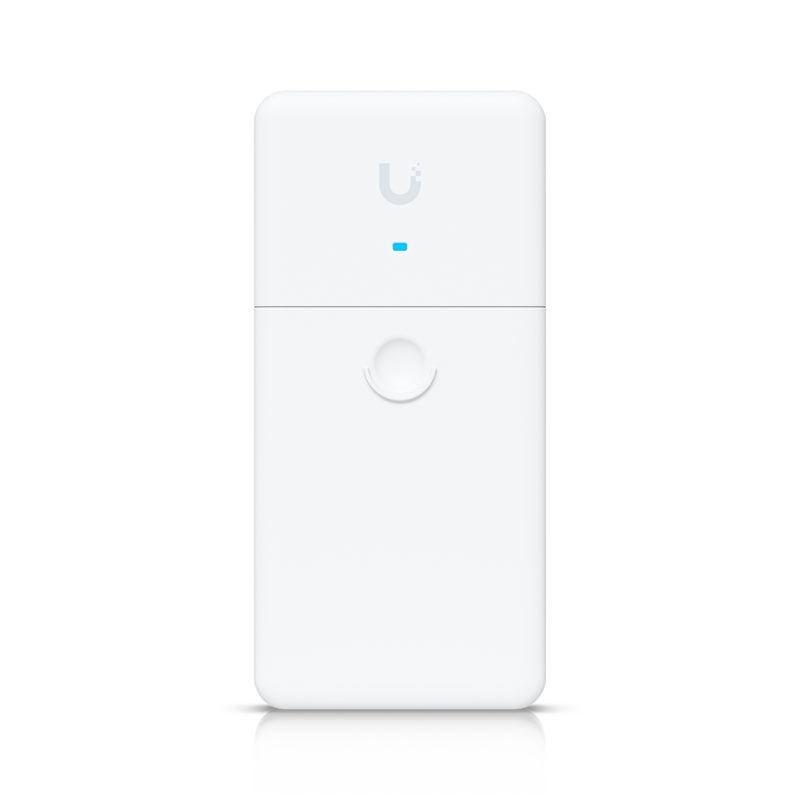

Ubiquiti Long-Range In-/Outdoor Ethernet Repeater PoE in/out

Beschreibung

Long-range Gigabit Ethernet adapter that receives PoE/PoE+ and offers passthrough PoE output.

Technische Daten

Höhe

7,6 cm

Tiefe

24,0 cm

Breite

13,1 cm

Gewicht

0,457 kg

Dimensions

196.5 x 93.5 x 39 mm (7.7 x 3.7 x 1.5")

Hardware: PoE

Amber: passthrough PoE out

Hardware: System

Blue: power ON

Hardware: Ethernet

Green: 1 Gbps Amber: 10/100 Mbps

Hardware: Max. MTU

1,500 bytes

Mechanical: Weight

350 g (12.3 oz)

Hardware: Power Method

PoE/PoE+ 2-pairs (Pins 1, 2+; 3, 6-)

Hardware: PoE Interface

(1) Passthrough PoE output 2-pairs (pins 1,2+; 3,6-)

Hardware: Forwarding Rate

1.488 Mpps

Hardware: Discharge Current

10kA+

Mechanical: Weatherproofing

IPX5

Hardware: ESD/EMP Protection

Air/contact: ± 30kV

Hardware: Switching Capacity

4 Gbps

Hardware: Total Available PoE

22.5W

Mechanical: Mounting Material

Stainless steel

Hardware: DC Sparkover Voltage

90V at 100V/s

Hardware: Networking Interface

(2) GbE RJ45 ports

Mechanical: Enclosure Material

UV stabilized polycarbonate

Hardware: Max. Power Consumption

1.5W (Excluding PoE output)

Hardware: Voltage Range PoE Mode

37—57V DC

Hardware: Ambient Operating Humidity

10 to 95% noncondensing

Hardware: Total Non-Blocking Line Rate

2 Gbps

Hardware: Ambient Operating Temperature

-40 to 80° C (-40 to 176° F)

Hardware: Max. Impulse Sparkover Voltage

700V at 1kV/μs
