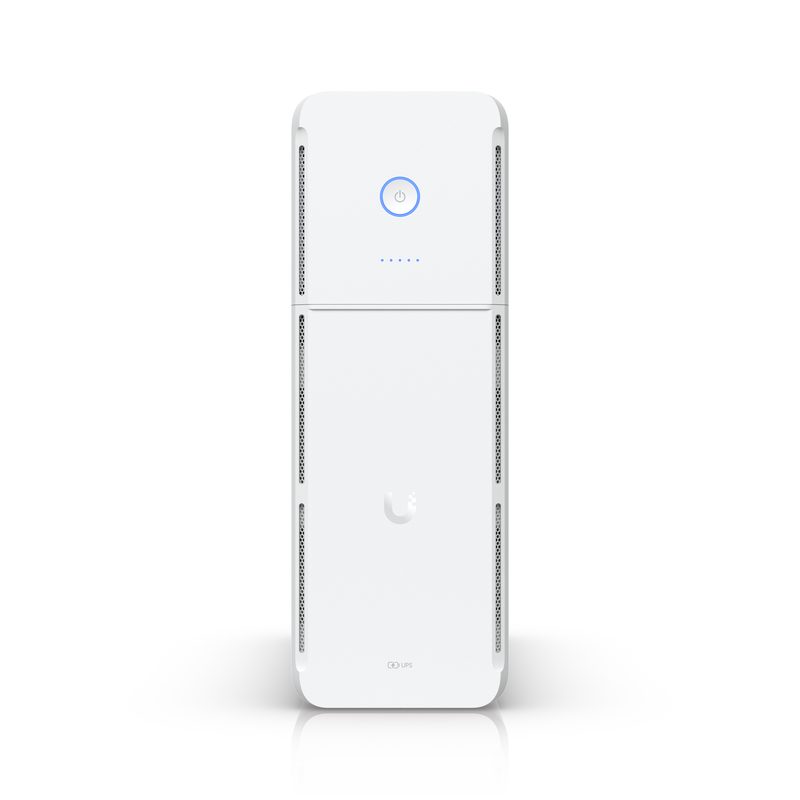

Ubiquiti UICARE-UPS-Tower-EU
Ubiquiti · UICARE-UPS-Tower-EU-D
Lieferzeit auf Anfrage
47,60 €inkl. MwSt., zzgl. Versand
Beschreibung
UniFi managed 1kVA uninterruptible power supply with 5 backup outlets 5 surge outlets and hot swappable battery, 108Wh, half load (300W) runtime of 7 minutes. Supports Graceful Shutdown for UNVR and UNAS, NUT compatibility for third-party devices.
Technische Daten
- Type
- C14 to Type G
- Length
- 30.5 cm (1 ft)
- Weight
- 300 g (10.6 oz)
- Pack Options
- Single unit
- Certifications
- VDE
- Hardware: Type
- Line interactive
- Hardware: Power
- (1) OVC II AC in: C14 socket, 1.8 m (5.9 ft) removable power cord (5) Battery backup/surge protection: C13 (5) Surge protection: C13
- Hardware: Status
- Off: device not turned on Flashing white: initializing / factory default Steady white: waiting for adoption Steady blue: device adoption and working Flashing blue: battery mode Alternating white/blue:
- Hardware: Buttons
- (1) Power (1) Factory reset
- Hardware: Runtime
- Full load: 2 min Half load: 7 min
- Hardware: Capacity
- 1,000VA/600W
- Mechanical: Weight
- 7.85 kg (17.3 lb)
- Hardware: Wave Form
- Simulated sine wave (Battery mode)
- Hardware: Management
- Ethernet
- Hardware: Battery Type
- (1) Lead Acid 12V, 9Ah
- Hardware: Power Method
- (1) TN system, 220–240V AC, 6A Max., 50/60 Hz
- Mechanical: Dimensions
- 288 x 99 x 280.5 mm (11.3 x 3.9 x 11")
- Hardware: Transfer Time
- 6 ms typical; 10 ms max. (Battery mode)
- Mechanical: Form Factor
- Desktop
- Hardware: Certifications
- CE, IEC 62040-1
- Hardware: Output Voltage
- 220–240V AC
- Hardware: Frequency Range
- AC mode: 50/60 Hz ±5 Hz (Auto sensing) Battery mode: 50 Hz ±1 Hz
- Hardware: Battery Indicator
- All off: 0% (1) Steady blue: battery 1–19% (2) Steady blue: battery 20–39% (3) Steady blue: battery 40–59% (4) Steady blue: battery 60–79% (5) Steady blue: battery 80–100%
- Mechanical: Weatherproofing
- IP20
- Hardware: Operating Altitude
- 3,000 m (1.9 mi)
- Hardware: Input Voltage Range
- 170–280V AC
- Hardware: Networking Interface
- (1) 100/10 MbE port for network connection (2) GbE ports for surge in/out
- Mechanical: Enclosure Material
- Polycarbonate and acrylonitrile butadiene styrene blend
- Hardware: AC Voltage Regulation
- ±10% (Battery mode)
- Hardware: Battery Charging Time
- 6-8 hours recovery to 90% capacity
- Hardware: Nominal Input Voltage
- 230V AC
- Hardware: Operating Environment
- Pollution Degree 2
- Hardware: Nominal Output Voltage
- 230V AC
- Hardware: Overload at Battery Mode
- 110% shutdown in 5 sec 120% shutdown immediately
- Hardware: Overload at On-Line Mode
- 110% 5 min go to fault 120% go to fault immediately
- Hardware: Ambient Operating Humidity
- 0 to 95% noncondensing
- Hardware: Ambient Storage Temperature
- -20 to 50° C (-4 to 122° F)
- Hardware: Output Short-Circuit Current
- Ipeak 401.9A Irms 160.7A
- Hardware: Ambient Operating Temperature
- 0 to 40° C (32 to 104° F)
- Hardware: Short Circuit Protection at On-Line Mode
- Breaker, 250V AC, 10A
