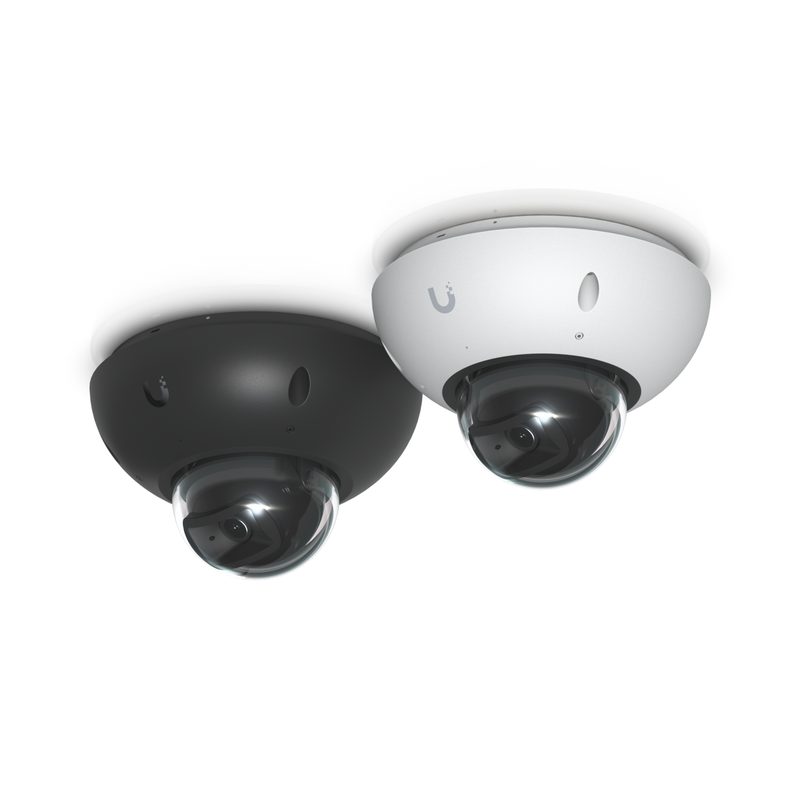

UbiQuiti UniFi G6 Dome White - UVC-G6-DOME-W

Beschreibung

All-weather, vandal-proof 4K PoE camera with a 1/1.8" 8MP image sensor, Multi-TOPS AI Engine, and long-range IR night vision ideal for discreet installations in high-traffic areas.

Technische Daten

Audio

Microphone

Weight

183 g (6.5 oz)

Gewicht

1,203 kg

Mounting

Ceiling, Wall mount (Included) Gang Box Mounting Plate, Camera Dual Mount, Flush Mount, Weather Shield (Optional)

Connector

(2) Shielding RJ45

Standards

TIA/EIA-568-B.2 ISO/IEC 11801

Dimensions

⌀144.7x 96.3 mm (⌀5.7 x 3.8")

Resolution

4K

Bend Radius

Min. 50.4 mm (1.98'')

Flame Rating

VW-1 (UL1581)

Pack Options

Single Unit

Compatibility

UVC-AI-Dome UVC-AI-Turret UVC-AI-Pro UVC-AI-DSLR UVC-AI-LPR UVC-G6-Bullet UVC-G6-Edge-Bullet UVC-G6-Pro-Bullet UVC-G6-Turret UVC-G6-Pro-Turret UVC-G6-Edge-Turret UVC-G6-PTZ UVC-G6-Dome UVC-G6-Pro-Dome

Field of View

H: 109.9°, V: 56.7°, D: 134.1°

UV Resistance

ASTM G 151/154

Conductor Type

Stranded copper

Shielding Type

S/FTP

IR Night Vision

30 m (98 ft)

Jacket Diameter

6.3 mm (0.25")

Jacket Material

Thermoplastic elastomer (TPE)

Weatherproofing

IP66

Available Colors

Black White

Hardware: Button

(1) Factory reset

Hardware: Weight

820 g (1.8 lb)

Threaded Outlets

1 1/2” NPS

Available Lengths

1, 2, 3, 5, 8 m (3.3, 6.6, 9.8, 16.4, 26.3 ft)

Grid overview: AI

Enhanced AI

Grid overview: IR

30 m (98 ft)

Mounting Material

Stainless steel

Performance: Lens

Fixed focal length

Tamper Resistance

IK10

Enclosure Material

Polycarbonate

Mechanical: Weight

80 g (2.8 oz)

Supported PoE Type

Up to PoE+++

Conductor Wire Gage

24 AWG

Hardware: Processor

Quad-core Arm® Cortex®-A53 based chip

Performance: Sensor

1/1.8" 8MP

Pole Mount Diameter

1.5–2" (38–50 mm)

Supported Data Rate

GbE

Grid overview: Sound

Microphone

Hardware: Insulation

Max. Resistance: 1G ohm @ 50V

Networking Interface

10/100 MbE RJ45 port

Operating Environment

Outdoor

Hardware: Power Method

PoE

Mechanical: Dimensions

91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")

Performance: Night Mode

Built-in IR LED illumination and IR cut filter

Performance: Resolution

8MP 3840 x 2160 (16:9)

UniFi Application Suite

Protect

Hardware: Certifications

CE, FCC, IC

Hardware: ESD Protection

Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs

Hardware: Mount Material

Polycarbonate

Installation Temperature

-20 to 60°C (-4 to 140°F)

Grid overview: Resistance

IK10

Hardware: Max. Capacitance

1.0 pF @ 1 MHz

Ambient Storage Temperature

-40 to 80°C (-40 to 176°F)

Grid overview: Weatherproof

Outdoor Exposed

Hardware: Discharge Current

10kA+

Mechanical: Weatherproofing

IPX5

Performance: Image Settings

Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR

Hardware: Enclosure Material

Aluminum alloy

Performance: Max. Frame Rate

30 FPS

Ambient Operating Temperature

-30 to 75°C (-22 to 167°F)

Grid overview: Lens Resolution

4K

Hardware: Data Line Protection

Up to 2.5 Gbps

Hardware: Networking Interface

(2) RJ45 female connectors

Mechanical: Enclosure Material

Polycarbonate

Hardware: DC Spark-Over Voltage

90V @ 100V/s

Hardware: Max. Power Consumption

9.25W

Hardware: Supported Voltage Range

37—57V DC

Performance: Networking Interface

10/100 MbE RJ45 port

Supported Gang and Junction Boxes

1-gang 2-gang 4" octagon 3.5" round 4" square 4" round European outlet

Hardware: Ambient Operating Humidity

0 to 90% noncondensing

Hardware: Ambient Operating Temperature

-20 to 50º C (-4 to 122º F)

Hardware: Max. Impulse Spark-Over Voltage

700V @ 1kV/µs

Hardware: Shock and Vibration Certification

ETSI300-019-1.4 Standard
