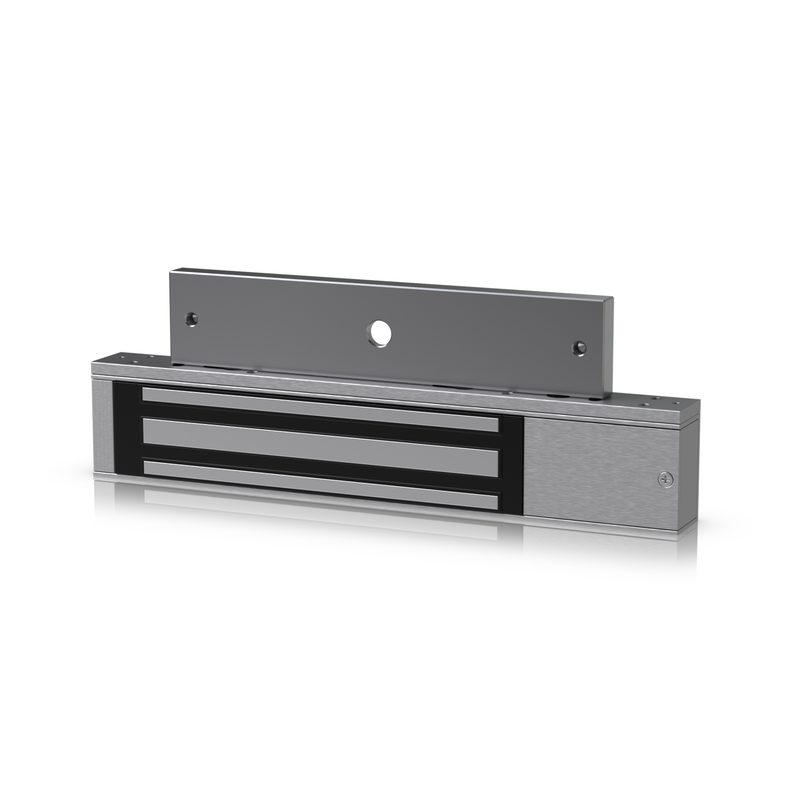

Ubiquiti External fail-safe magnetic lock 540kg

Beschreibung

Fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub.

Technische Daten

DPS

Embedded

Weight

UA-Lock-Magnetic-270kg Lock body: 1 kg (2.2 lb) Install plate: 70 g (0.15 lb) Armature: 600 g (1.3 lb) UA-Lock-Magnetic-540kg Lock body: 2.9 kg (6.4 lb) Install plate: 145 g (0.3 lb) Armature: 1.4 kg

Wiring

(1) Lock 12V/NC (red) (1) Lock 12V/COM (black) (1) DPS/+ (white) (1) DPS/- (yellow)

Mounting

UA-Lock-Magnetic-270kg L bracket: for outward opening door thickness < 42 mm (< 1.7") Z bracket: for inward opening door, used with L bracket U bracket: for glass door thickness ≤ 17 mm (≤ 0.7") and

Lock Type

Fail safe

Dimensions

UA-Lock-Magnetic-270kg Lock body: 250 x 42.5 x 26 mm(9.8 x 1.7 x 1" ) Install plate: 250 x 25x 5 mm (9.8 x 1 x 0.2" ) Armature: 185.5 x 38.5 x 11 mm (7.3 x 1.5 x 0.4") UA-Lock-Magnetic-540kg Lock bod

Current Power

500mA ±10%

Holding Force

UA-Lock-Magnetic-270kg: 270 kg (600 lb) UA-Lock-Magnetic-540kg: 540 kg (1,200 lb)

LED Indicator

Green: unlocked Red: locked

Certifications

FCC, IC, CE

Support Door Type

UA-Lock-Magnetic-270kg: Single door (Wooden/metal/glass) UA-Lock-Magnetic-540kg: Single door (Wooden/metal)

Enclosure Material

Device/brackets: aluminum Armature: steel

Support Voltage Range

12V DC ±10%

Ambient Operating Humidity

5 to 90% noncondensing

Ambient Storage Temperature

-20 to 70° C (-4 to 158° F)

Ambient Operating Temperature

-10 to 60° C (14 to 140° F)
